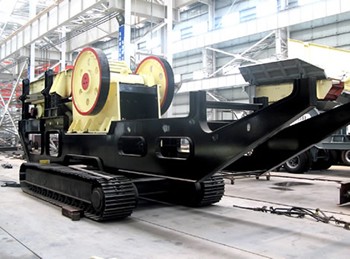

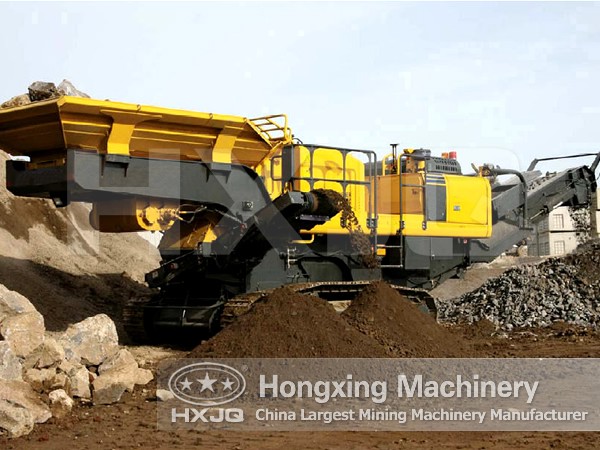

Crawler Type Mobile Crusher

Crawler Type Mobile Crusher

Feeding size: 480-850mm

Processing capacity: 45-500t/h

Applied material: river pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.), ore tailings.

Get a Quote Send Message

The Usage and Description of Crawler Type Mobile Crusher:

Crawler-type mobile crusher is crushing equipment with high efficiency, with automatic driving mode, advanced technology and complete functions. Crawler-type mobile crusher can be reached anywhere in the workplace in any terrain, which reduces material transportation operation, and facilitates coordination of all auxiliary machinery and equipment.

mobile crusher

The Performance Characteristics of Crawler Type Mobile Crusher:

The user can easily drive the crawler-type mobile crusher on a trailer via a wireless remote control and transport to the job site. No assembly time is needed, so the device can be immediately put into work as long as it's arriving at the job site. Crawler-type mobile crusher can meet the most basic technology needs, and it has large crushing ratio, high productivity, and even granularity of finished materials.

Technical data

Classification of items A type Dual power crawler type mobile feeding and screening plant B type Dual power crawler type mobile feeding and screening plant
models Y3S154GL Y3S184GL Y3S186GL Y3S154BL Y3S184BL Y3S186BL
Vibrating screen(mm) 3YZS1548 3YZS1848 3YZS1860 3YZS1548 3YZS1848 3YZS1860
Main belt conveyor Belt conveyor feeding Sorting and feeding
Belt conveyor Feeding belt conveyor B1000×4M B1000×4M B1200×4.5M B1200×3M B1200×3M B1200×3M
Main belt conveyor B800×5M B1000×5M B1000×5M B1000×8M B1200×8M B1200×9M
Under vibrating screen B800×4.5M B1000×4.5M B1000×5.5M B800×7M B1000×7M B1000×8M
Left side-opening belt conveyor B500×7.3M B500×7.3M B650×7.3M B500×7.3M B500×7.3M B650×7.3M
Right side-opening belt conveyor1 B500×7.3M B500×7.3M B650×7.3M B500×7.3M B500×7.3M B650×7.3M
Right side-opening belt conveyor2 B500×7.3M B500×7.3M B500×7.3M B500×7.3M B500×7.3M B650×7.3M
Genset(kw) 120 120 120 120 120 120
Transportation length(mm) 12300 12300 13500 12000 12000 13200
Transportation width(mm) 2700 2920 2920 2900 3150 3150
Transportation height(mm) 3900 3900 3900 3600 3600 3700
Transportation Weight(t) 28 30 34 28 32 35
