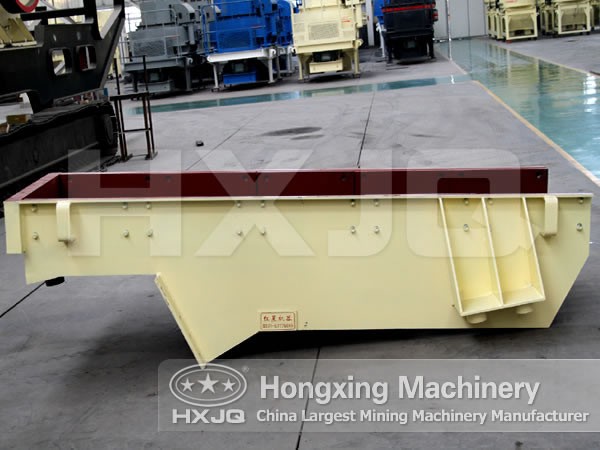

Vibrating Feeder

Vibrating Feeder

Processing capacity: 1-105t/h

Feeding size: 125-250mm

Motor power: 5.5-55kw

Get a Quote Send Message

The Application and Description of Vibrating Feeder:

Vibrating feeder is also named Vibratory feeder. Vibrating Feeder is a kind of linear direction feeding equipment. It features smooth vibrating, reliable operation, long service life and being suitable for feeding. They are widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants.

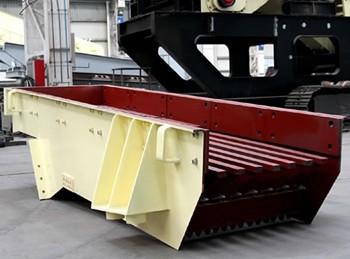

Vibrating Feeder

The Structure and Working Process of Vibrating Feeder:

Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. In installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through vibration, the materials will slip and sling on the funnel, moving forward; when the materials pass the screening part, smaller parts will fall down, avoiding the further crushing, so screening purpose can be reached.

The Performance Characteristics of Vibrating Feeder:

This series vibration feeding engine has many characteristics such as steady vibration, reliable operation, low noise, low energy consumption, long service life, convenient maintenance, light weight, small volume, easy equipment adjustment and good overall performance.

Technical data

Model Max.
of material
GZD-650×2300 300 80-100 1.1×2 10-20 650×2300 2300×1360×780
GZD-750×2500 350 100-130 1.5×2 10-20 750×2500 2500×1460×780
GZD-850×3000 400 120-150 3×2 10-20 850×3000 3110×1800×1600
GZD-1000×3600 500 150-200 3.7×2 10-20 1000×3600 3850×1950×1630
GZD-1100×3600 580 240-300 3.7×2 10-20 1100×3600 3600×2050×1660
GZD-1300×3600 650 450-600 7.5×2 10-20 1300×3600 3900×2350×1750
GZD-1500×3600 1050 450-1000 7.5×2 10-20 1500×3600 3900×2000×1750
GZD-2000×3600 1200 550-1000 10×2 10-20 2000×3600 3600×2000×1750
GZD-2500×5000 1500 650-1500 18×2 10-20 2500×5000 5000×2500×1800
ZSW-380×95 500 100-180 11 0-10 3800×960 3800×1640×1320
ZSW-490×110 630 150-400 15 0-10 4900×1100 4980×1830×1320
ZSW-490×130 750 400-700 22 0-10 4900×1300 4980×2580×2083
ZSW-600×130 750 400-700 22 0-10 6000×1300 6082×2580×2083
ZSW-600×150 800 500-900 30 0-10 6000×1300 6086×2662×1912
ZSW-600×180 900 700-1300 37 0-10 6000×1500 6310×3262×2230
ZSW-600×200 1200 800-1500 45 0-10 6000×2000 6086×2662×1912
